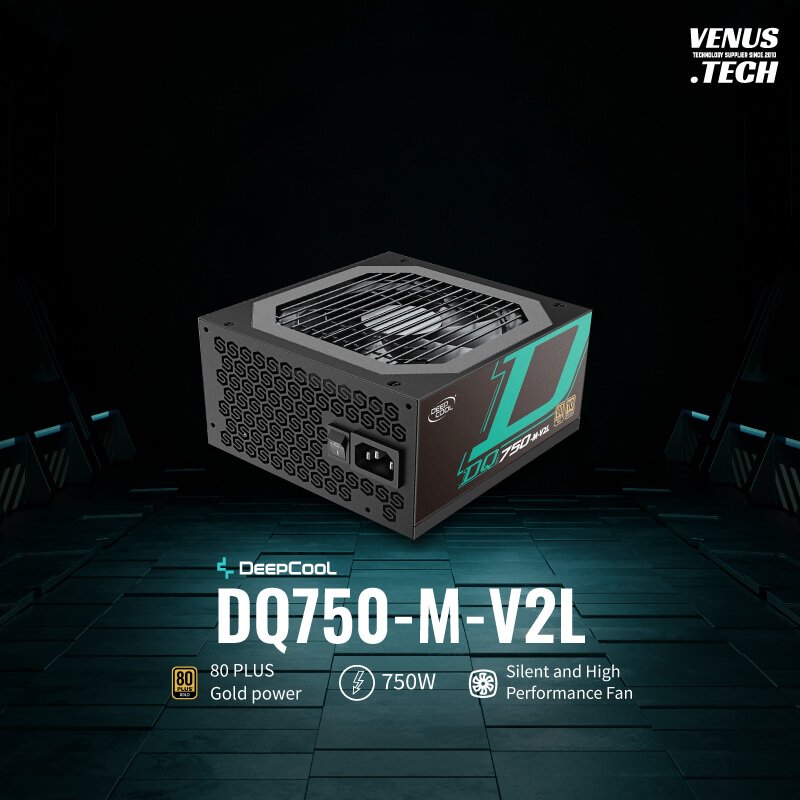

DQ750-M V2L
Reliable 80 PLUS Gold Efficiency
The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified – Up to 87~90% efficient (20~100% Loading)
Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise
Details Discovered
High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors
Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process
Highly reliable supervisor IC for protections
Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
X1
Main Power Connector 24(20+4)Pin
X2
EPS 12V Connector 8(4+4)Pin
X2
PCI-E (6+2)Pin x2
X1
SATA x4
X2
4Pin Peripheral x2 & SATA x2
| Brand | Deepcool |
|---|---|
| Model | DQ750-M-V2L |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 750 W |
| Fans | 1 x 120mm Hydraulic Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | >16ms (80% Loading) |
| Efficiency | >90% Under Typical Load (50% Loading) |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP / UVP / SCP / OPP / OTP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 47 – 63 Hz |
| Input Current | 10 A |
| Output | +3.3V@20A, +5V@20A, +12V@62A, -12V@0.3A, +5VSB@2.5A |
| MTBF | 100,000 Hours |
| Approvals | CE / CB / CCC / EAC / FCC / KCC / RCM / RoHs |
| Connectors | 1 x Main Power Connector 24(20+4)Pin 2 x EPS 12V Connector 8(4+4)Pin 4 x PCI-E (6+2)Pin 8 x SATA 4 x Peripheral 4Pin |
| Features | 80 PLUS GOLD certified – Up to 91.2% efficiency 100% High quality Japanese capacitors Full bridge PFC + LLC Resonant converter CircuitShield – OVP / UVP / SCP / OPP / OTP |
|---|
| Dimensions | 3.39″ x 5.91″ x 6.30″ |
|---|---|
| Weight | 5.73 lbs. |
