DeepCool AK SERIES

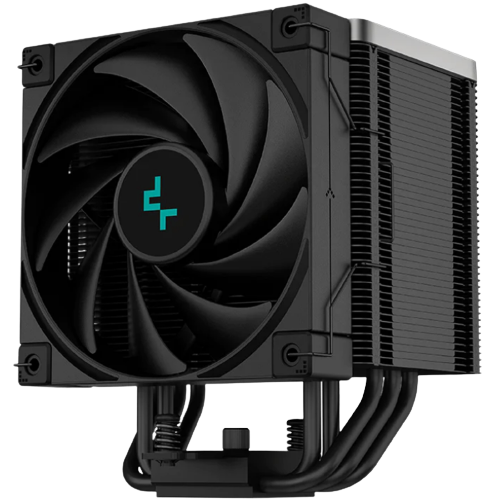

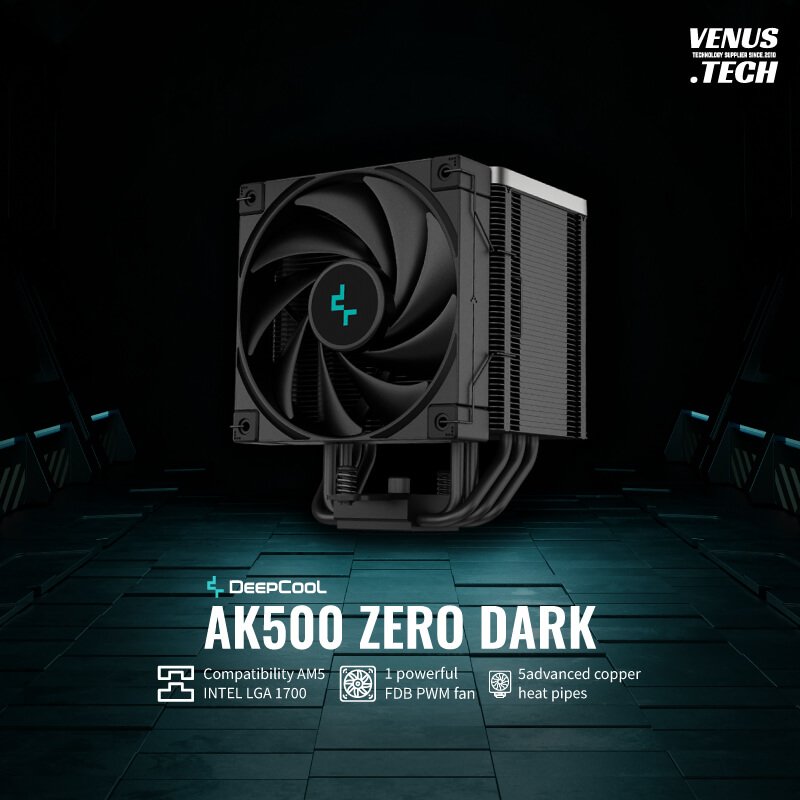

DeepCool AK500 Zero Dark CPU Air Cooler
ALL-BLACK edition of DeepCool AK500 CPU air cooler, ideal choice to build PC in “Black Samurai” style
Elegant Giant
Mighty Performance with Delicate Design
Giant Heatsink DeepCool AK500 Zero Dark CPU air cooler, mounted with a wide decorative board for a neat appearance with summit 240w TDP performance
BETTER COOLING SYSTEM
DeepCool FK120 Fans
AK500 Zero Dark mounted with DeepCool 120mm FK120 PWM fan, 1850RPM maximum speed offers strong 68.99CFM airflow with noise level lower than 31.5dB(A) to build a efficient cooling system
SPACE SAVER
High-Compatibility for RAM Slots
DeepCool AK500 Zero Dark was designed with new heat pipe construction which is very space friendly for better compatibility without blocking RAM slots
Beauty of Construction
“Chessboard” Heat Sink Appearance
Giant tower “Chessboard” heat sink design makes it highly recognizable for DeepCool AK500 Zero Dark
MULTI-PLATFORM COMPATIBLE
AK500 Sockets for AMD/ Intel Motherboards
DeepCool AK500 CPU air cooler is compatible with the latest sockets on AMD AM5/AM4 Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

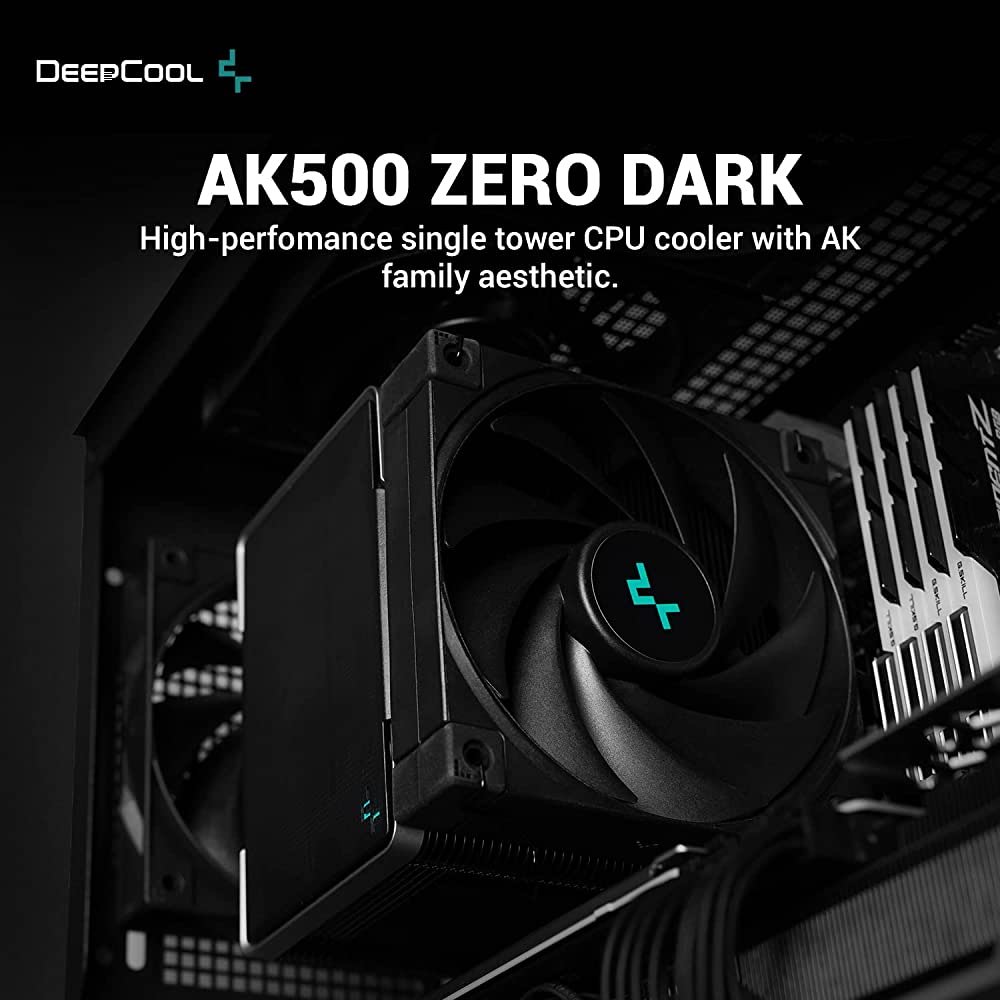

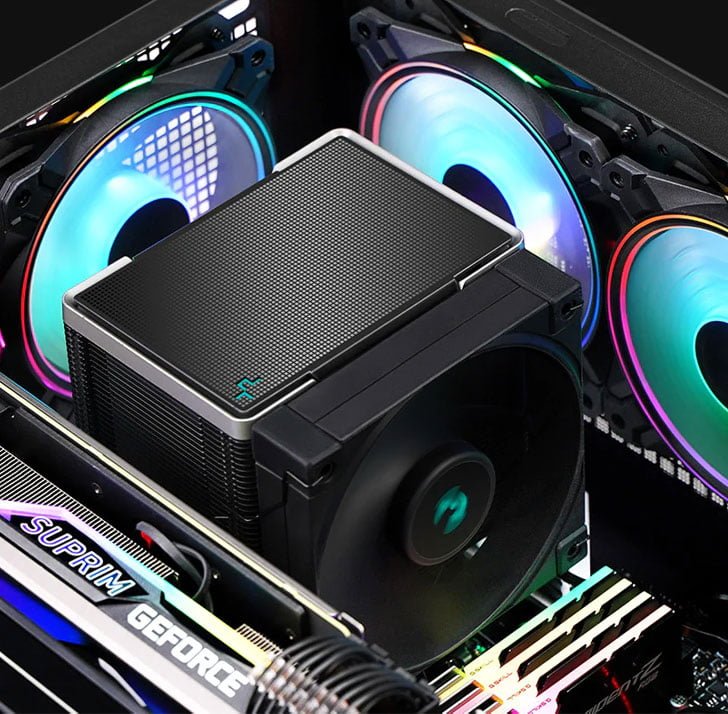

HOW’S DeepCool AK500 ZERO DARK CPU AIR COOLER LOOKS LIKE IN PC CASE
Specification
| Key Features | ||
| Fan Speed | 500~1650 RPM±10% | |
| Fan Airflow | 59.46 CFM | |
| Noise | ≤28 dB(A) | |
| Air Pressure | 1.62 mmAq | |
| Connector | 4-pin PWM | |
| Others | Heatpipe: Ø6 mm×4 pcs Bearing Type: Fluid Dynamic Bearing Fan Rated Voltage: 12 VDC Fan Rated Current: 0.1 A Fan Power Consumption: 1.2 W | |
| Physical Specification | ||
| Dimension | Product Dimensions: 127×123×155 mm Heatsink Dimensions: 120×45×152 mm Fan Dimensions: 120×120×25 mm | |
| Weight | 802 g | |
| Supported Sockets | ||
| Intel | LGA1700/1200/1151/1150/1155 | |
| AMD | AM5/AM4 | |
| Warranty Information | ||
| Warranty | 3 Year Warranty | |
