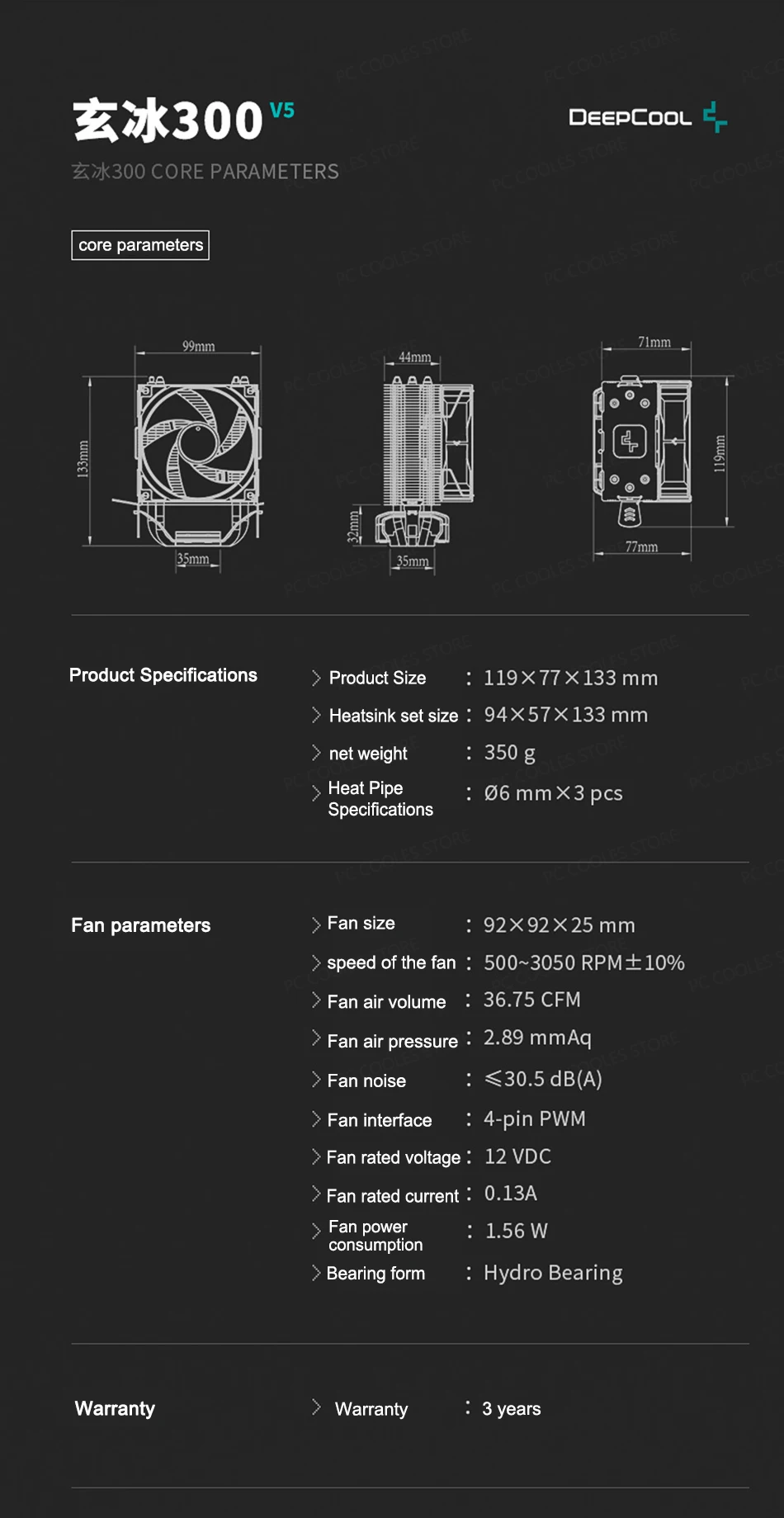

Specifications:

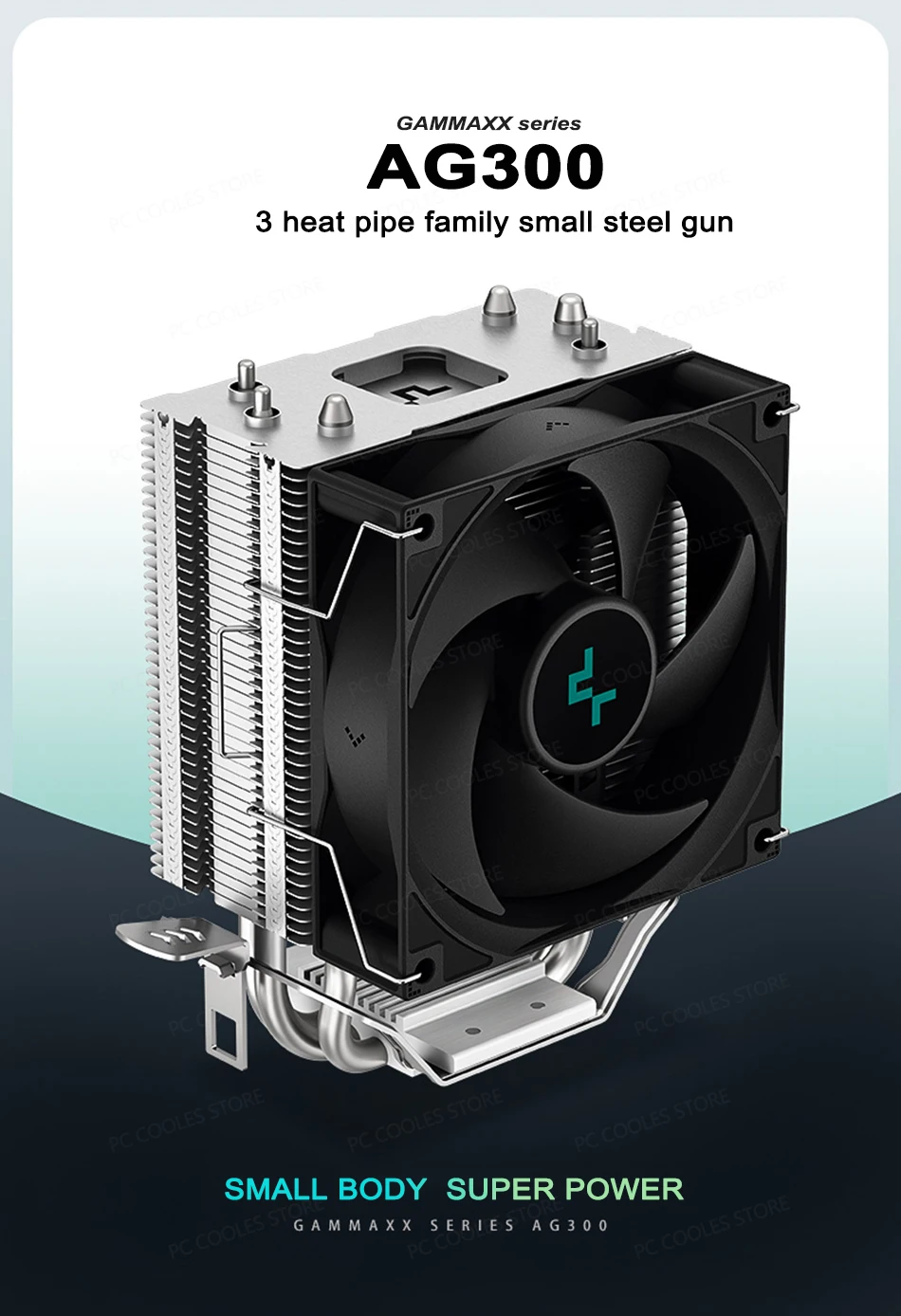

Product Dimensions | 119×77×129 mm |

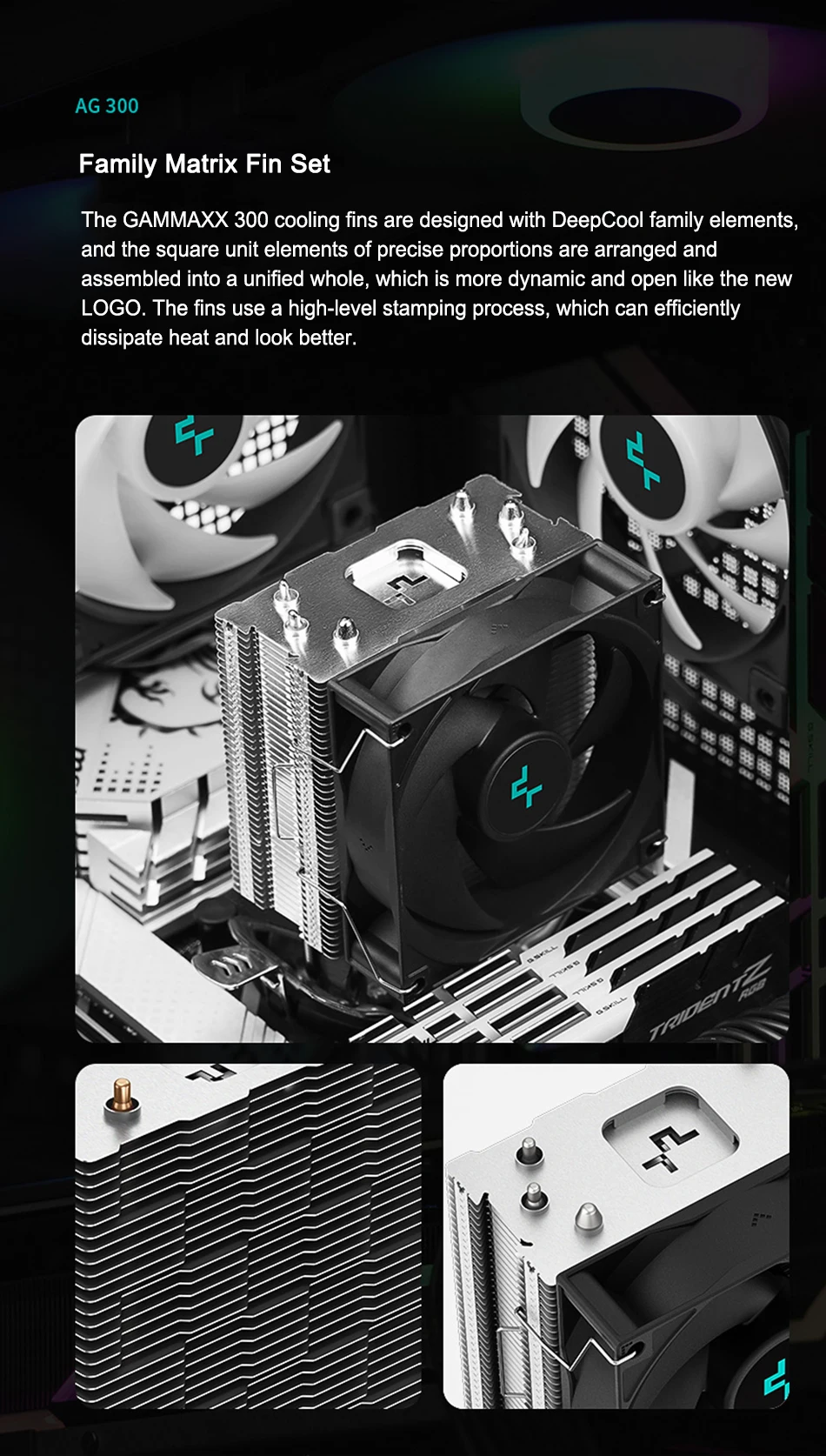

Heatsink Dimensions | 94×57×129 mm |
Net Weight | 350 g |

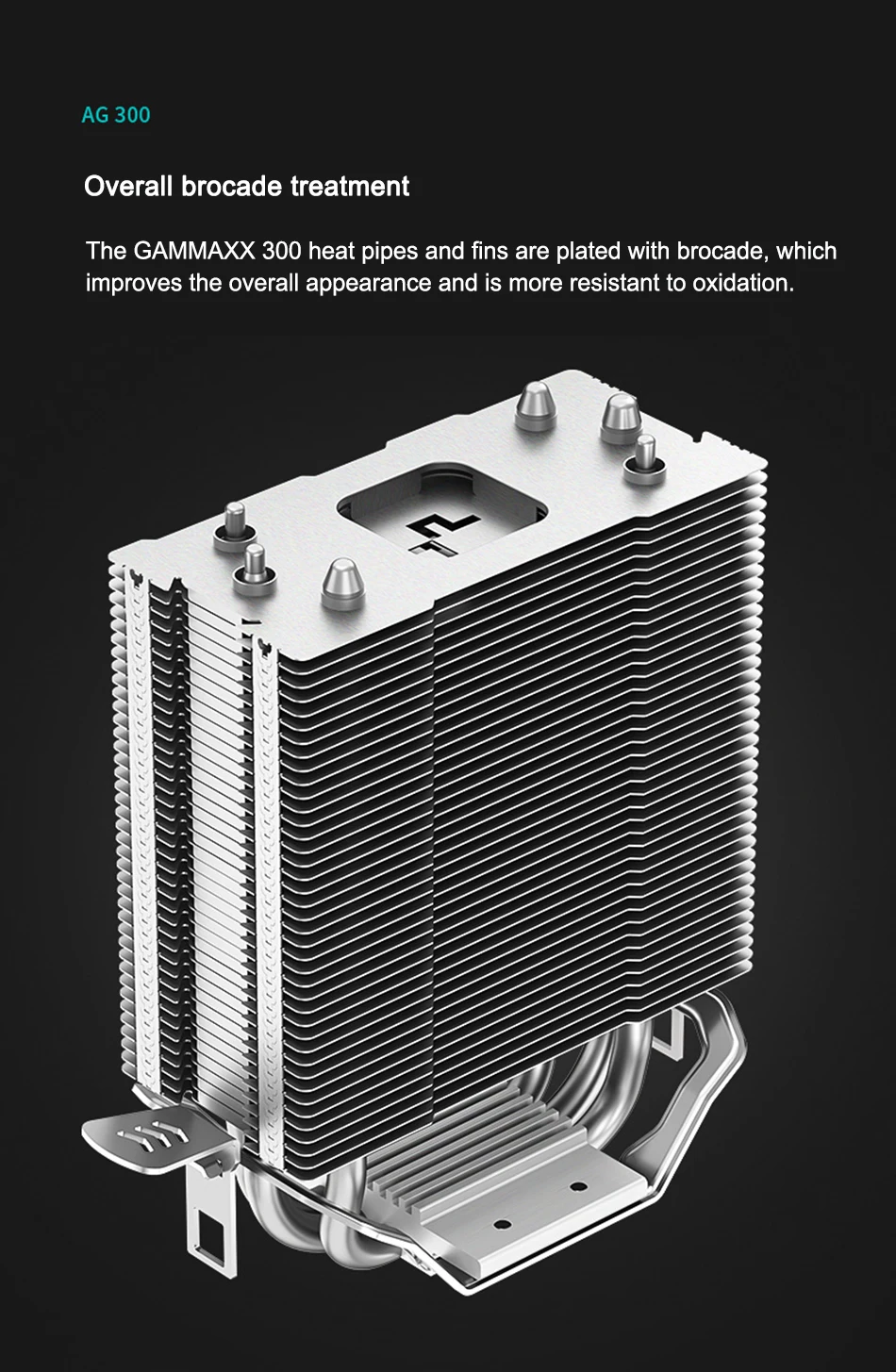

Heatpipe | Ø6 mm×3 pcs |

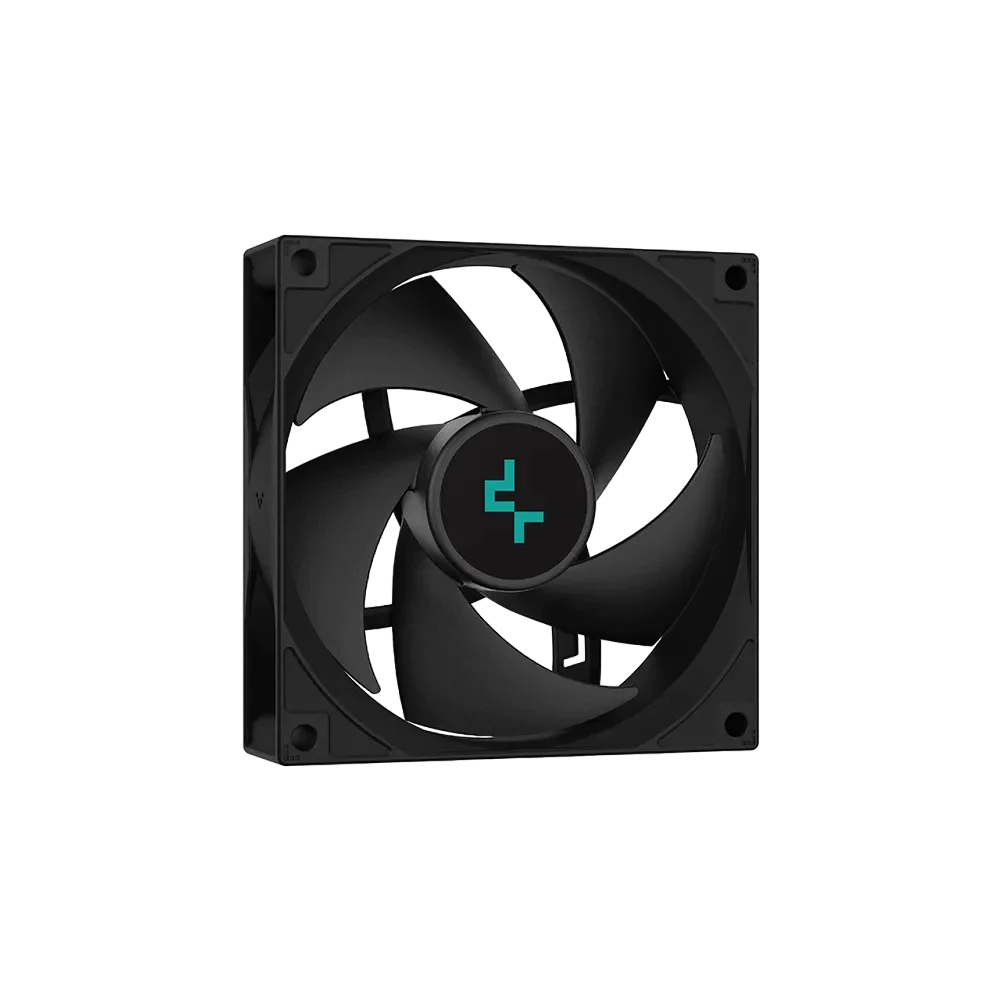

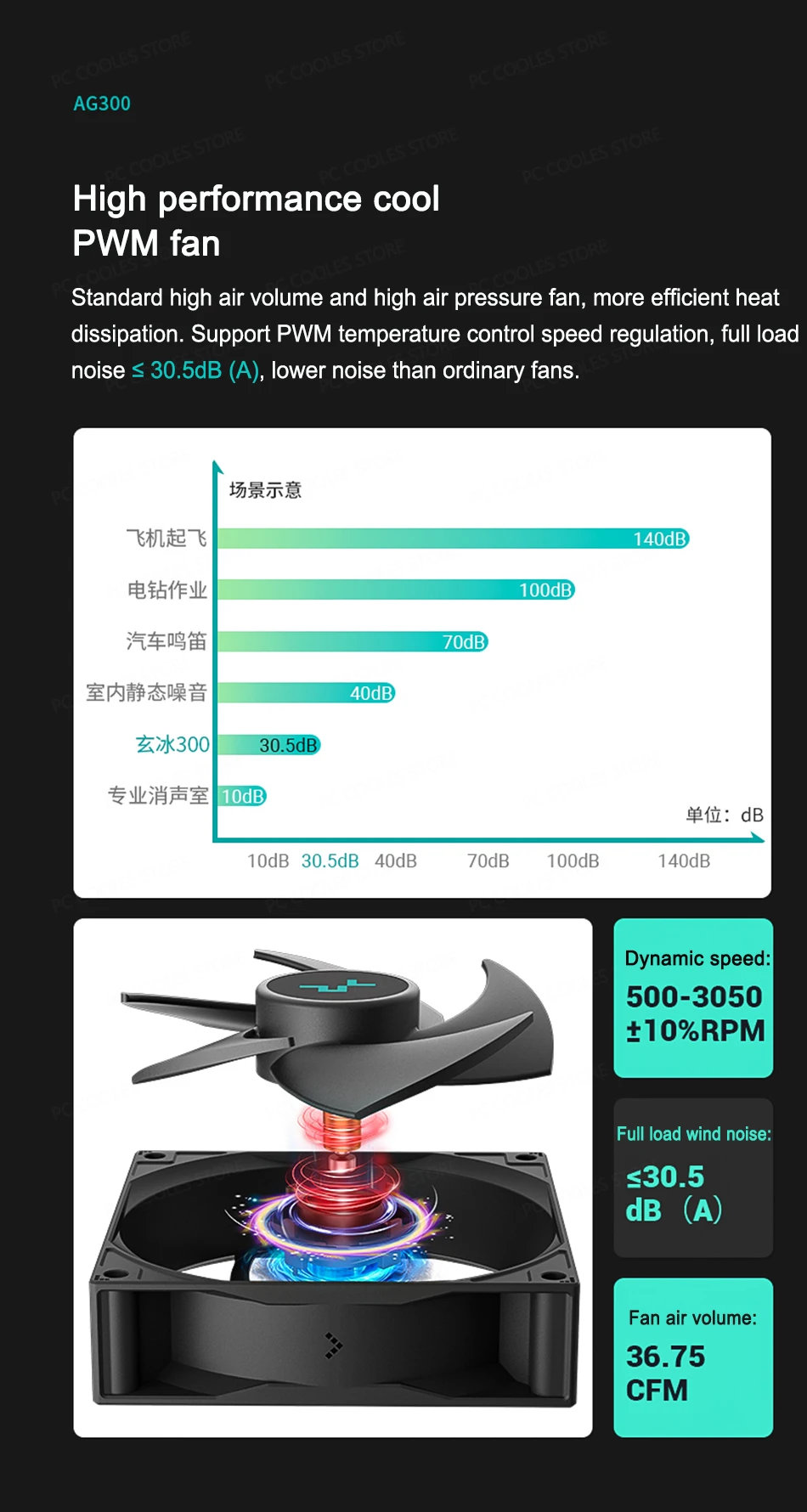

Fan Dimensions | 92×92×25 mm |
Fan Speed | 500~3050 RPM±10% |
Fan Airflow | 36.75 CFM |
Fan Air Pressure | 2.89 mmAq |
Fan Noise | ≤30.5 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Hydro Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.13 A |
Fan Power Consumption | 1.56 W |
