The best bargain for upgrading

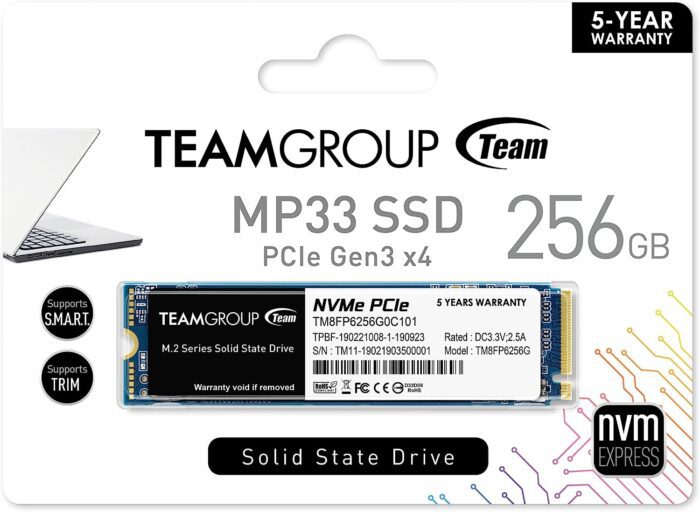

TEAMGROUP releases the new – MP33 M.2 PCIe Solid State Drive. It uses high-speed PCIe Gen3 x4 interface and complies with the NVMe 1.3 standard. With 3D nand flash memory, it is a great bargain and the performance is excellent. Both laptop and PC users can afford it easily, making it the best choice for upgrading.
3 times faster than SATA III

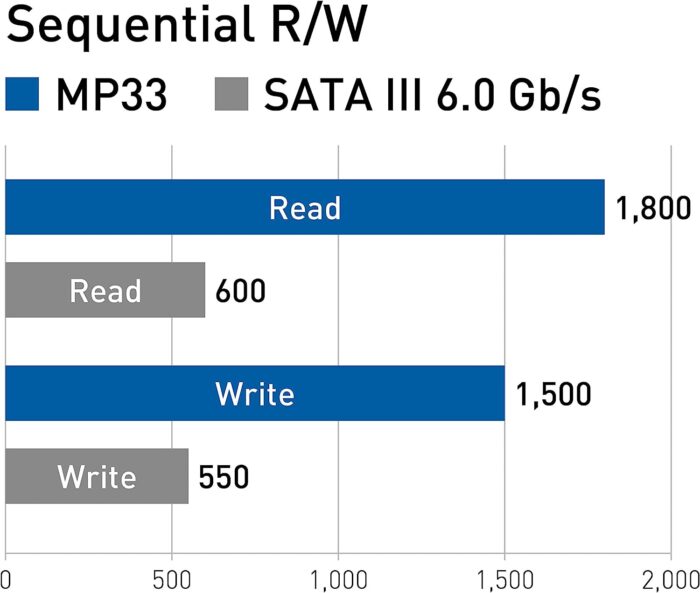

The maximum read/write speed of MP33 M.2 PCIe Solid State Drive is 1,800/1,500MB/s[1], which is three times faster than SATA 6Gb/s interface. It is able to reduce operating delays while gaming and loading software that gives computer workers and gamers the finest and smoothest gaming experience and extremely high-speed performance without any lag even loading heavy duty video/graphics editing software and games.
Available in all capacities
MP33 M.2 PCIe Solid State Drive are available in capacities of 128GB, 256GB, 512GB, 1TB, etc. Using the size of current mainstream specification 2280(W:22mm x L:80mm), it can be directly installed in the M.2 slot on the latest Intel and AMD motherboards. It is lightweight, thin, compact and supports Intel and AMD’s new platform. Suitable for players who have needs in speed, and it is the top choice when it comes to upgrading PC or laptop.
Comprehensive smart management mechanism
MP33 M.2 PCIe Solid State Drive supports S.M.A.R.T function and its built-in smart algorithm management mechanism has functions such as GC (garbage collection) and TRIM command which are able to ensure operation efficiency, enhance the service life of the solid state drive and bring it to its maximum performance. Meanwhile, the powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the accuracy and reliability of data transfer and prolong the service life of the solid state drive.
Specifications
| Brand | Team Group |
|---|---|
| Series | MP33 |
| Model | TM8FP6256G0C101 |
| Part Number | TM8FP6256G0C101 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
|---|---|
| Capacity | 256GB |
| Memory Components | 3D NAND |
| Interface | PCIe 3.0 x4 with NVMe 1.3 |
| Cache | 0MB |
| Max Sequential Read | Up to 1600 MBps |
|---|---|
| Max Sequential Write | Up to 1000 MBps |
| 4KB Random Read | Up to 160,000 IOPS |
| 4KB Random Write | Up to 200,000 IOPS |
| Terabytes Written (TBW) | 150TB |
| MTBF | 1,500,000 hours |
| Features | Using new generation of 3D flash memory: Capacity, performance, and durability are greatly improved PCI-e interface – Supports latest NVMe 1.3 protocol M.2 2280 specification: Supports the next-generation platforms of Intel and AMD. Suitable for both desktop and notebook Supports SLC Caching technology. Greatly enhance computing performance |
|---|
| Operating Temperature | 0°C ~ +70°C |
|---|---|
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | RH 90% under 40 celsius degree |
| Max Shock Resistance | 1,500G / 0.5 ms |
| Max Vibration Resistance | 80-2,000 Hz / 20G |
| Height | 3.80mm |
|---|---|
| Width | 22.00mm |
| Depth | 80.00mm |
| Weight | 6.00g |
