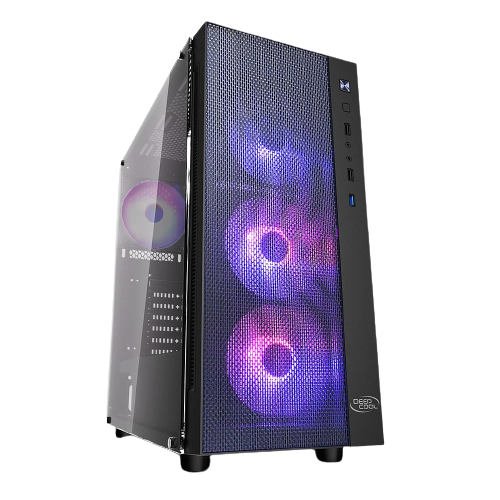

The MATREXX 55 ADD-RGB helps you build a PC that’s powerful inside and beautiful outside. Optimized airflow design and the support for liquid cooler and multiple case fans ensure superior cooling performance for your high-end hardware. Dual tempered glass windows (one on side and one in the front) let you show off the innards while a PSU shroud and advanced cable management design keep your system tidy and clutter-free. Enjoy captivating lighting effects of the pre-installed addressable RGB strip, which can be controlled by a manual button or compatible motherboard software. You can also add more RGB devices with the included two RGB connectors.
ADD-RGB Syncing Open to All Brands
The Matrexx 55 case comes with an expandable RGB lighting system and includes a pre-installed addressable RGB strip in the front that’s easily controlled by a manual button or via the motherboard. Additionally, the case lets you add on more RGB devices by including two RGB connectors—one for the Deepcool/Gamerstorm ecosystem and the other for universal 5V 3-pin headers. Now, 5V ADD-RGB devices of any brand can be brought into this system!
Dual 4mm Tempered Glass
The full-sized, 4mm-thick tempered-glass side panel and front panel give the case a unique look to perfectly show off your interior structure
Massive Cooling Compatibility
Optimized airflow comes guaranteed with large air intakes on both sides of the front panel and air exhausts in the back and on top, keeping your components perfectly cool.
Cooling Compatibility
Supports the Installation of a Liquid Cooler
1. 120/140/240mm radiator liquid-cooling system on top
2. 120mm radiator liquid-cooling system in the back
3. 120/140/240/280/360mm radiator liquid-cooling system in the front
Supports the Installation of Cooling Fans :
1. 2x 120mm or 2x 140mm fans on top
2. 1x 120mm fan in the back
3. 3x 120mm or 3x 140mm fans in front
PSU Shroud Added
The Matrexx 55’s ADD-RGB version comes equipped with a PSU shroud to hide cables and keep the system nice and tidy.
Easy Cable Management
Managing cables is now easy with the 210mm-wide tower compartment (23mm clearance).
Supports Motherboards Up to E-ATX
Power Supply: ATX PS2 (Length less than 170mm)
Supports a Maximum 370mm Graphics Card
Large-Area Air Intakes on Both Sides of the Front Panel Ensure Sufficient Airflow
The magnet-mounted dust filter provided at the front panel, offers users easy removal and cleaning
1x USB 3.0 + 2x USB 2.0 + HD Audio & Mic Ports + Reset + RGB Button + Power
Specifications
| Motherboard | Mini-ITX/Micro-ATX/ATX/E-ATX |
| Case Type | Middle Tower |
| Materials | ABS+SPCC+Tempered Glass |
| Product Dimensions (L x W x H) | 440 x 210 x 480mm |
| Carton Dimensions (L x W x H) | 523 x 277 x 514mm |
| Net Weight | 6.6Kg |
| Gross Weight | 7.6Kg |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 2 |
| External 3.5” Drive Bays | 0 |
| 2.5″ Drive Bays | 4 |
| I/O Ports | USB2.0 x 2, USB3.0 x 1, Audio x 1, Mic x 1 |
| Expansion Slots | 7 Slots |
| Power Supply Type | ATX PS2 Length less than 170mm） |
| Cable Management | 23mm clearance |
| CPU Cooler Height Limit | 168 mm |
| VGA Length Limit | 370mm |
| Cooling Fans Support | Optional: Front: 140mm x 3/120mm x 3 Top: 140mm x 2/120mm x 2 Rear: 1×120mmPre-installed: Front: 3 x 120mm A-RGB fan Rear: 120mm x1 A-RGB fan |
| Liquid Cooler Support | Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120mm |
